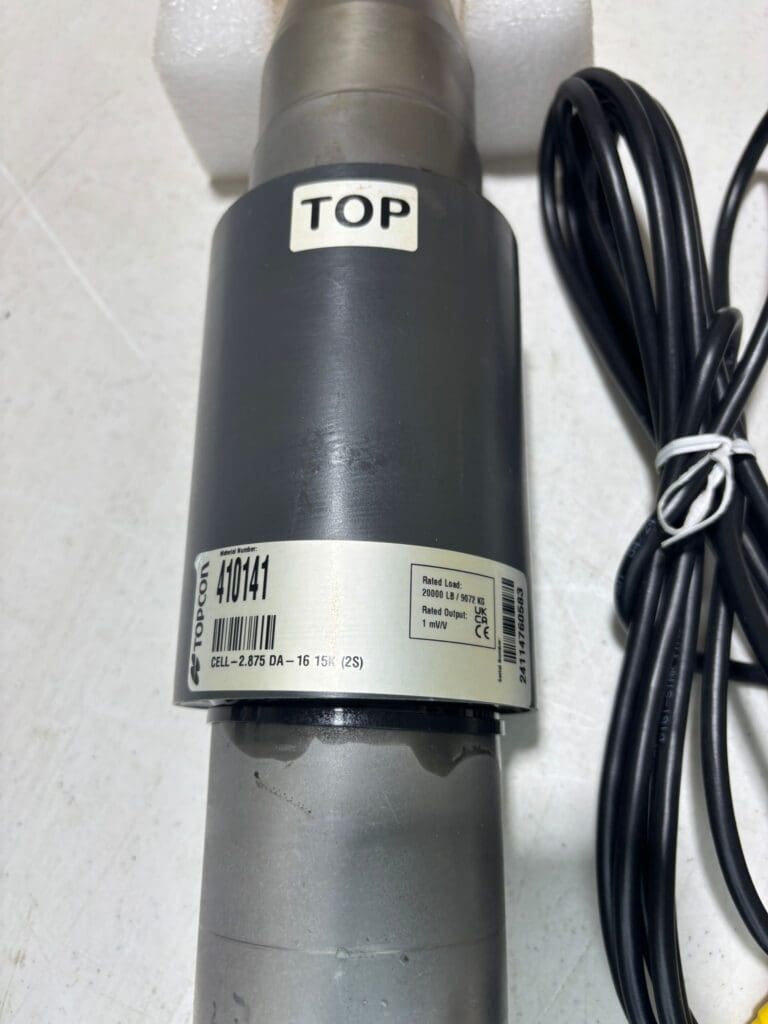

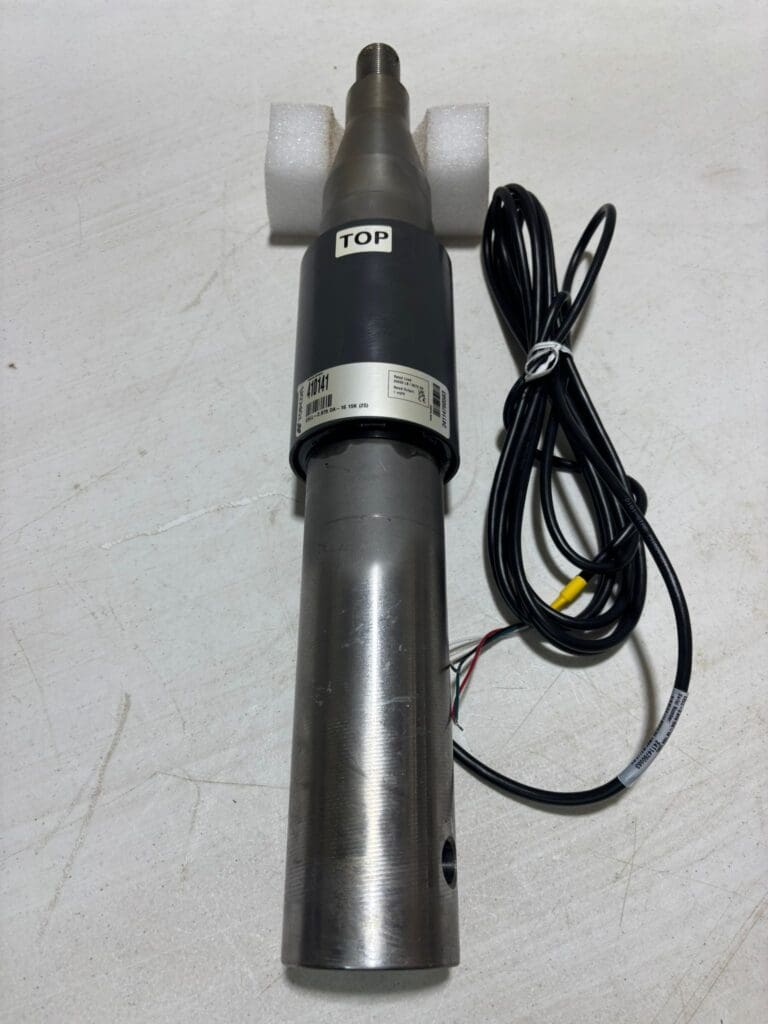

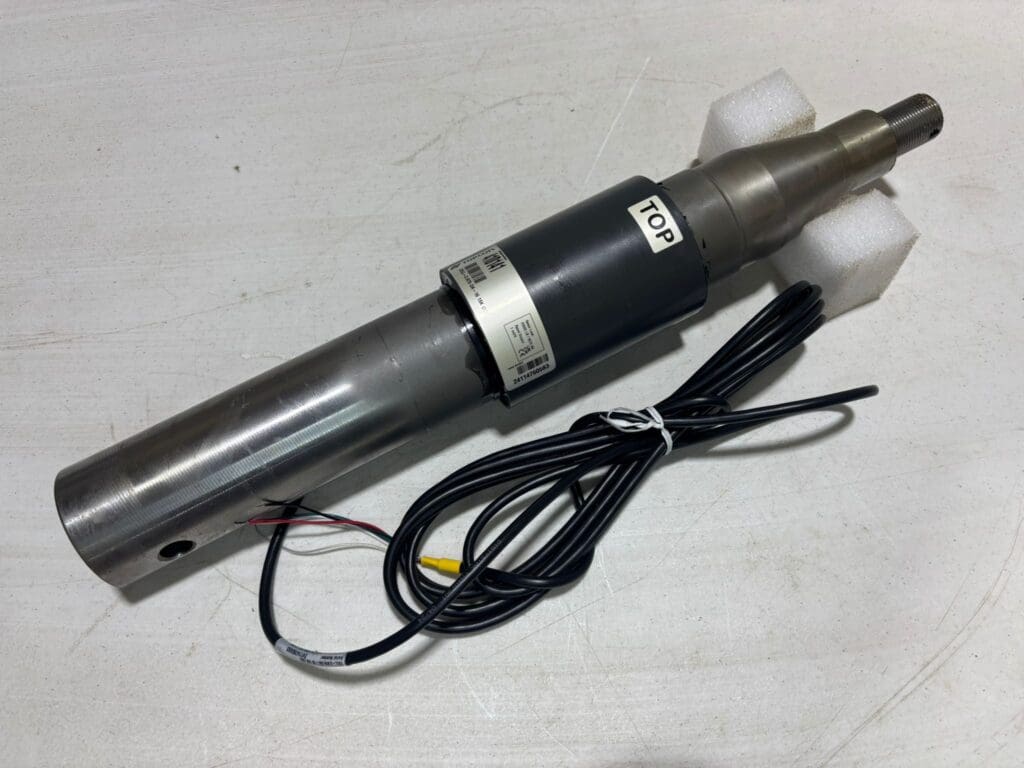

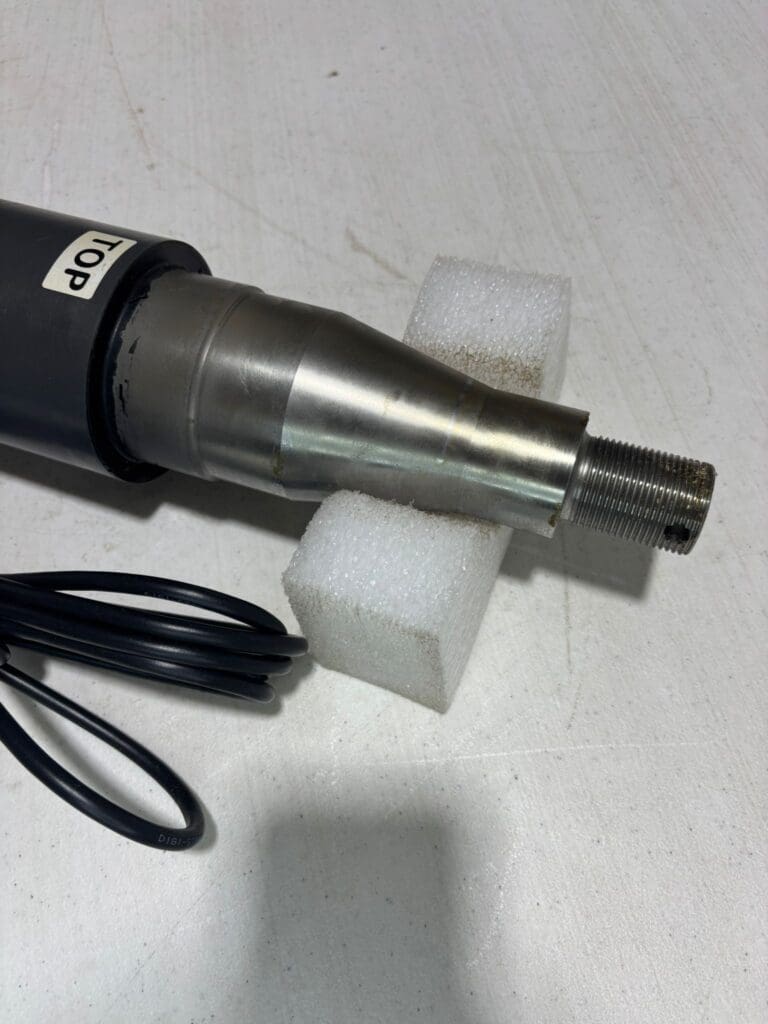

Digi-Star P/N 410141
Overall Diameter : 2.875″
Classification : Spindle Load Cell
Overall Length : 22.25″
Hub # : 873
Inside Bearing Diameter : 2.7495
Outside Bearing Diameter : 1.7495
Mounting Hole : (1) 0.656″ Vertical
Calibration : 1 MV/V 20000Lb Rated CAP
Cable Length : 16′
Termination : Tinned Leads
*Note when installing the 873 hub on this axle, the standard CR33772 seal must be replaced with a new TCM28464TA seal
$1,300.00
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Quantity:
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
| Weight | 42 lbs |
|---|---|
| Dimensions | 24 × 10 × 8 in |
| Brand |
