Auger-Steer



Steering System for Any Pull-Type Auger or Conveyor

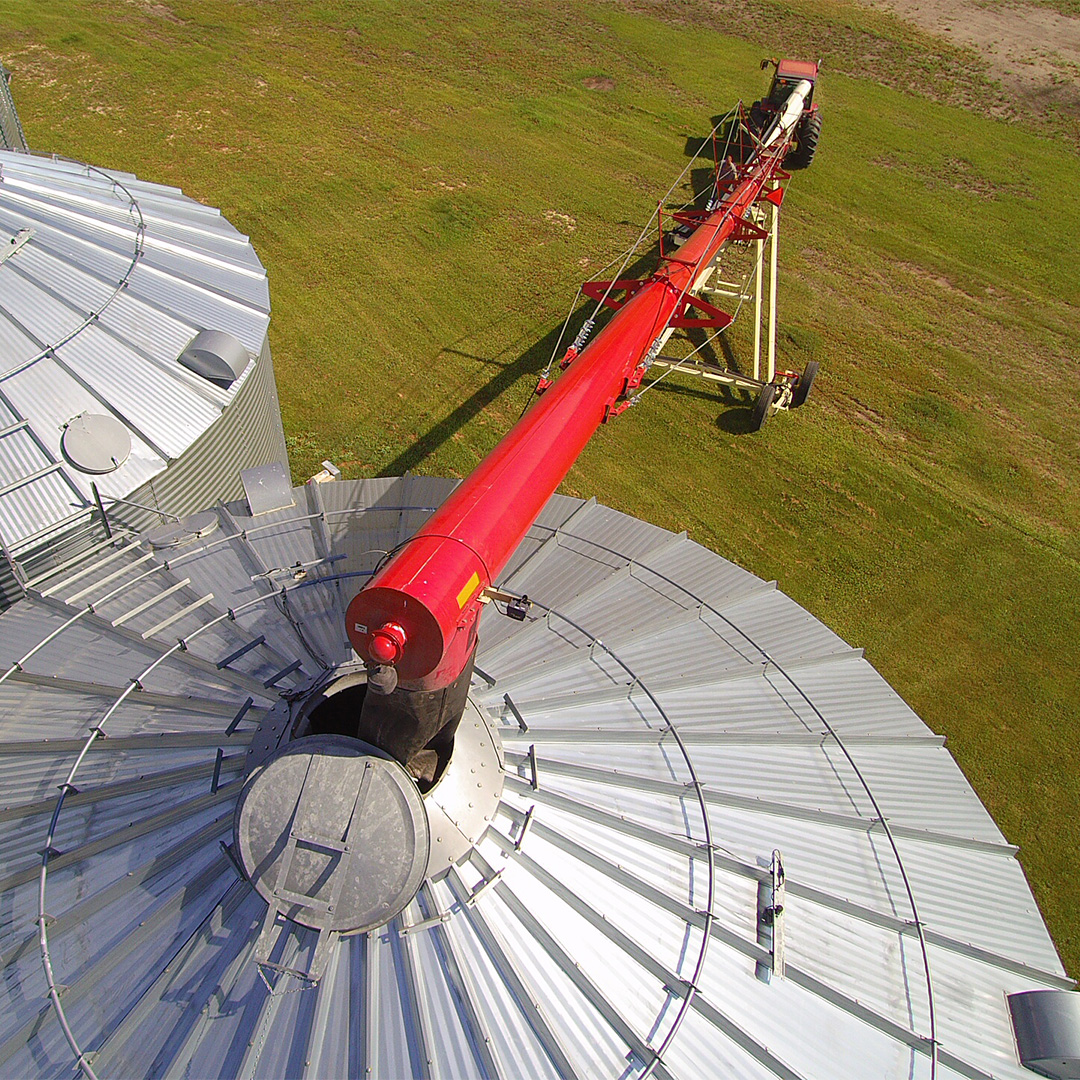

This is a new product that drastically improves the maneuverability of pull-type augers and conveyors. Not only can Auger-Steer aid in getting your auger into those tight spots or around tight corners, auger-Steer also enables the auger spout to sway left and right to make lining up the bin fill hole easier.

There is no need to continuously reposition the auger to get the spout to line up with the bin fill hole. Auger-Steer also makes it easier to find the centre line while backing into a shed. This product is designed to make auger transportation and positioning considerably easier and more efficient.

Three Types of Auger-Steers Available

Auger-Steer has been designed and tested keeping operating safety in mind. That’s why there is a safety valve included in every Auger-Steer Kit. This valve locks the wheels in the position they are in so that the wheels don’t move when the Auger-Steer hydraulic hoses are disconnected from the tractor. This way, the auger or bins don’t get damaged and the operator is safe.

Auger-Steer-removable-assembly-banner

1. Augers that have a removable spindle/wheel hub assembly

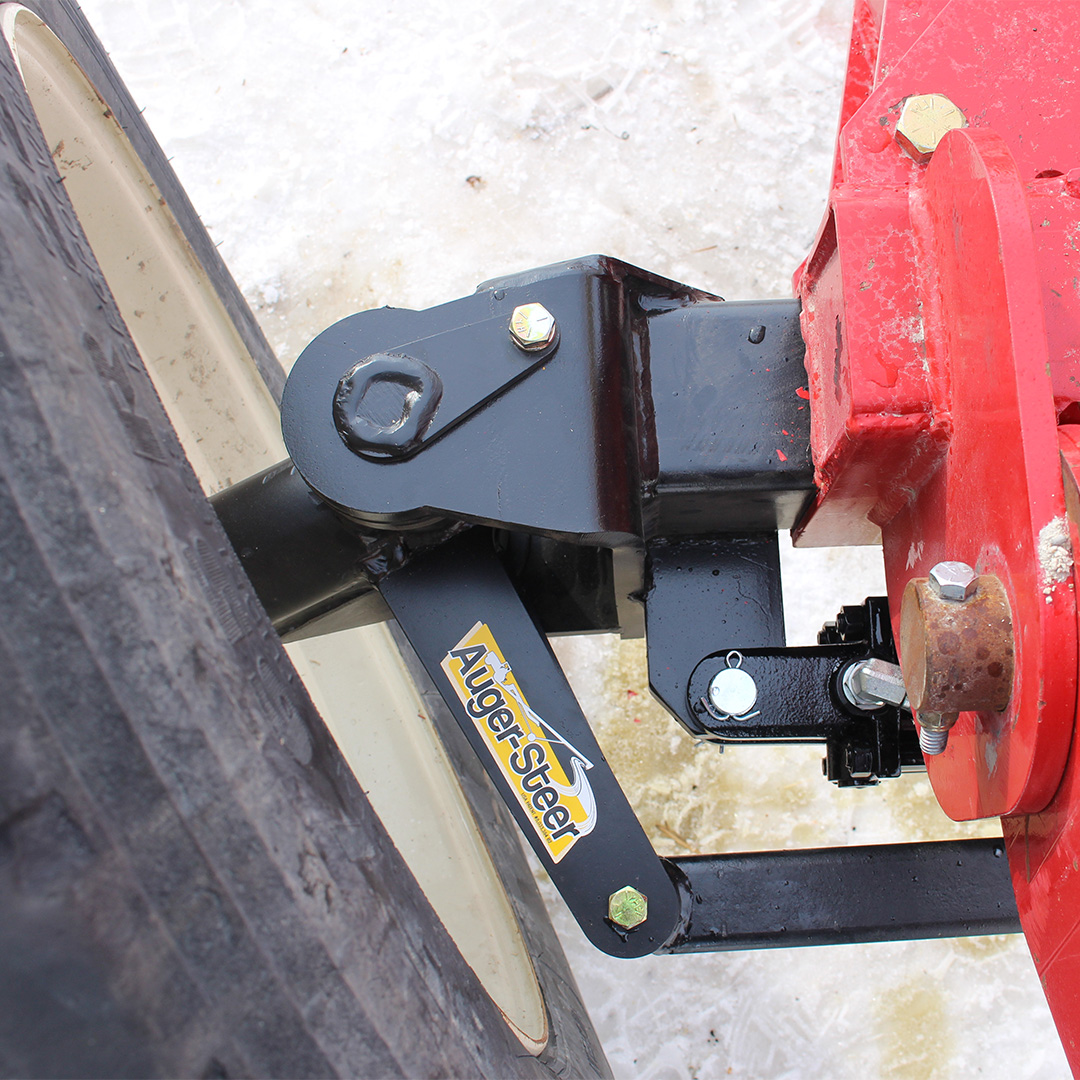

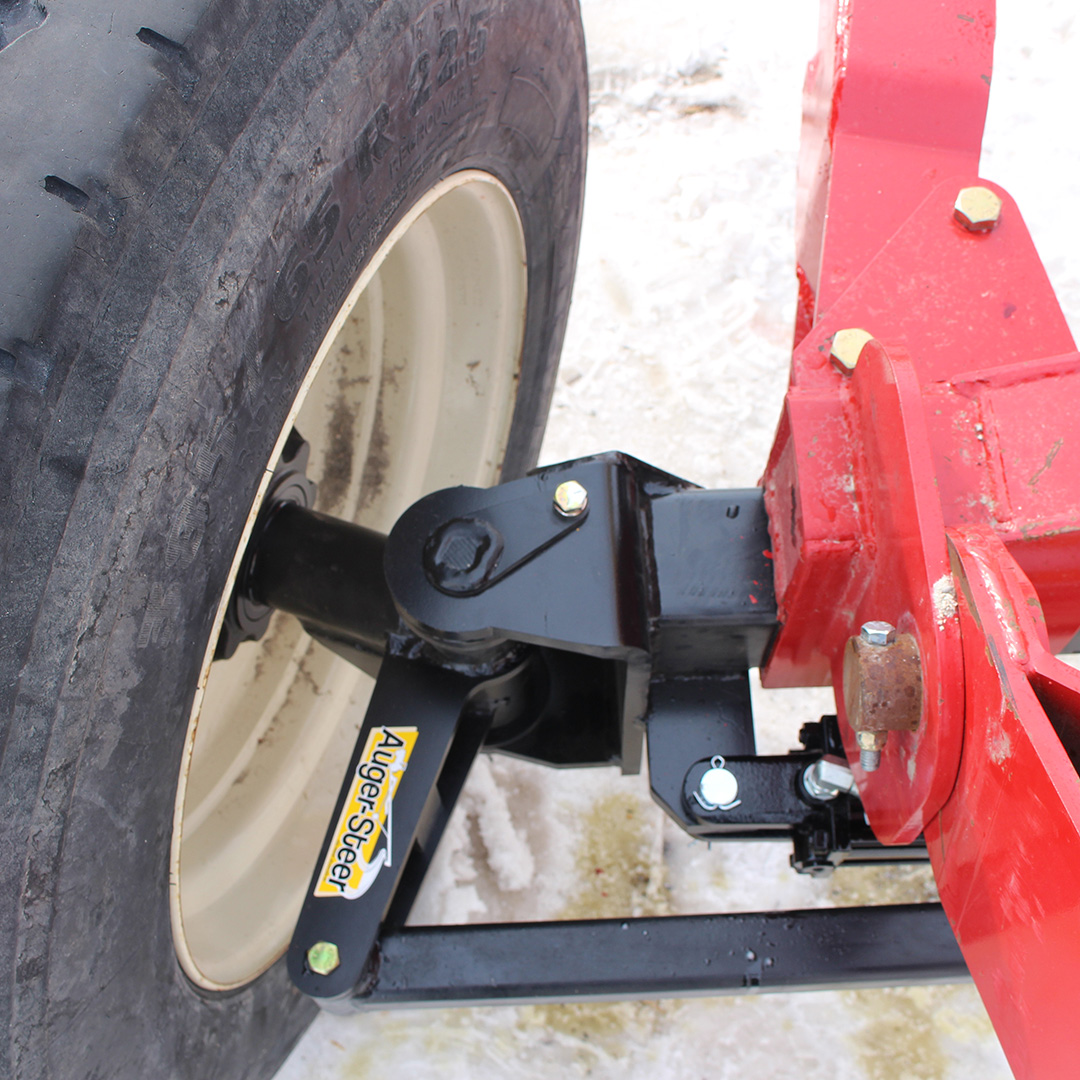

The Auger-Steer steering knuckle simply attaches between the spindle/wheel hub assembly and the auger frame. The rest of the hardware attaches to the frame of the auger.

This kit includes everything you need to fully install Auger-Steer to your auger or conveyor, including all Auger-Steer parts, hydraulic cylinder, hydraulic safety valve, all hydraulic hoses, and hydraulic couplings to match your tractor.

Auger-Steer-permanent-assembly-banner

2. Augers that have a permanent welded spindle/wheel hub assembly.

The Auger-Steer steering knuckle comes welded to a section of square tubing that gets bolted to the existing auger frame. The rest of the hardware attaches to the frame of the auger.

This kit includes everything you need to fully install Auger-Steer to your auger or conveyor, including all Auger-Steer parts, new spindles and wheel hubs to match existing auger tire rims, hydraulic cylinder, hydraulic safety valve, all hydraulic hoses, and hydraulic couplings to match your tractor.

Auger-Steer-Quad-Steer-banner

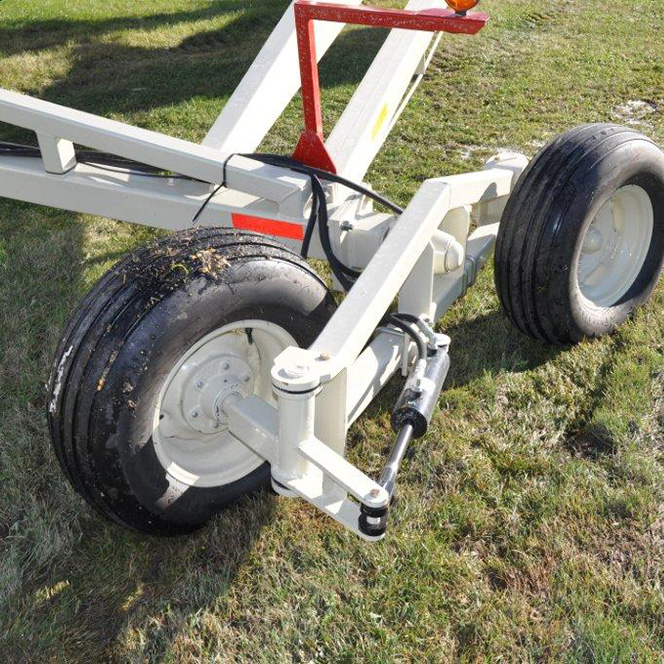

3. Quad-Steer which offers added stability and maneuverability.

Walking axle reduces uneven terrain by half. Simply mounts to existing hubs. Built to handle the largest augers and conveyors
